Supplier Resources

Review Best Practices

ASTM E716 Standard

Safety

The ASTM E716 standard describes best practices for obtaining representative samples for quantometer analysis. Please be aware of the safety disclaimer in section 1.3 of the ASTM E716 standard. It is the responsibility of the producing plant to ensure employee safety.

Review the entire standard with special emphasis on the following sections:

  • 1. Scope, Safety
    3. Summary of Practices
    4. Significance of Use
  • 5.1 Ladle
    5.2 Sample Molds
    5.2.2 Type B
  • 5.3 Lathe
    5.4 Tool Bits
    7.1.1 Chill-Cast disk by Molds A or B

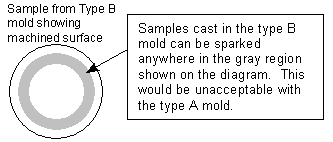

Section 5.2 discusses the significant benefits of using the “Type B” center pour mold. See the drawing below. This mold produces a sample that can be analyzed along a band just inside its circumference after proper machining.

Machined Samples

Machined samples sent to Logan must be between 7.0 – 11.2 mm (0.276-0.440 in) thick and 57-63mm (2.244-2.480 in) in diameter. Original sample thickness should be between 9.0-13.0 mm (0.354 – 0.512 in). Producing plants should use the ASTM type B mold.

Section 7.1.1 discusses the importance of machining to the correct depth in the sample. Machining off 14 to 22% of the original sample thickness presents a surface that will provide a representative chemistry (depending on the analytical capability of the spectrometer) of the bulk metal. Simple studies have shown that machining from the sprue side provides analysis less susceptible to mold and metal temperature.

Each producing plant must develop best practices so that the chemistry provided to Logan accurately represents the bulk metal chemistry. Chemical samples MUST be from the heat shipped. Each plant must ensure that enough samples are taken at casting time so that a sample is available for each heat shipped. Substituting a sample from a heat with a similar chemistry us unacceptable. A piece or corner cut from an ingot or sow is not an acceptable chemical sample.

Chemical Sample Dimension & Matching Chart

additional Resources

Reference Materials

Samples / Sampling / Laboratory Practice

Below there are some pdf or Excel files that contain great training or reference materials. One of the most important sections illustrates why sample depth of cut is very important. The best example is Magnesium (Mg) segregation in 5182 alloy. Segregation occurs for all elements to some degree in most alloys. Machining the sprue side of the sample has been found to be the best. Consistent depth of cut to the correct depth is critical for obtaining representative chemistry of the melt.

If you have any questions about alloy checks or any other best practice please contact John.Zeh@logan-aluminum.com

Logan Automated Spectrometer Laboratory

Check out this video to see it in action.
